■Non-sparking Tools
■Beryllium Copper & Aluminum Bronze
■Die Forged
■Q/ZBF-263

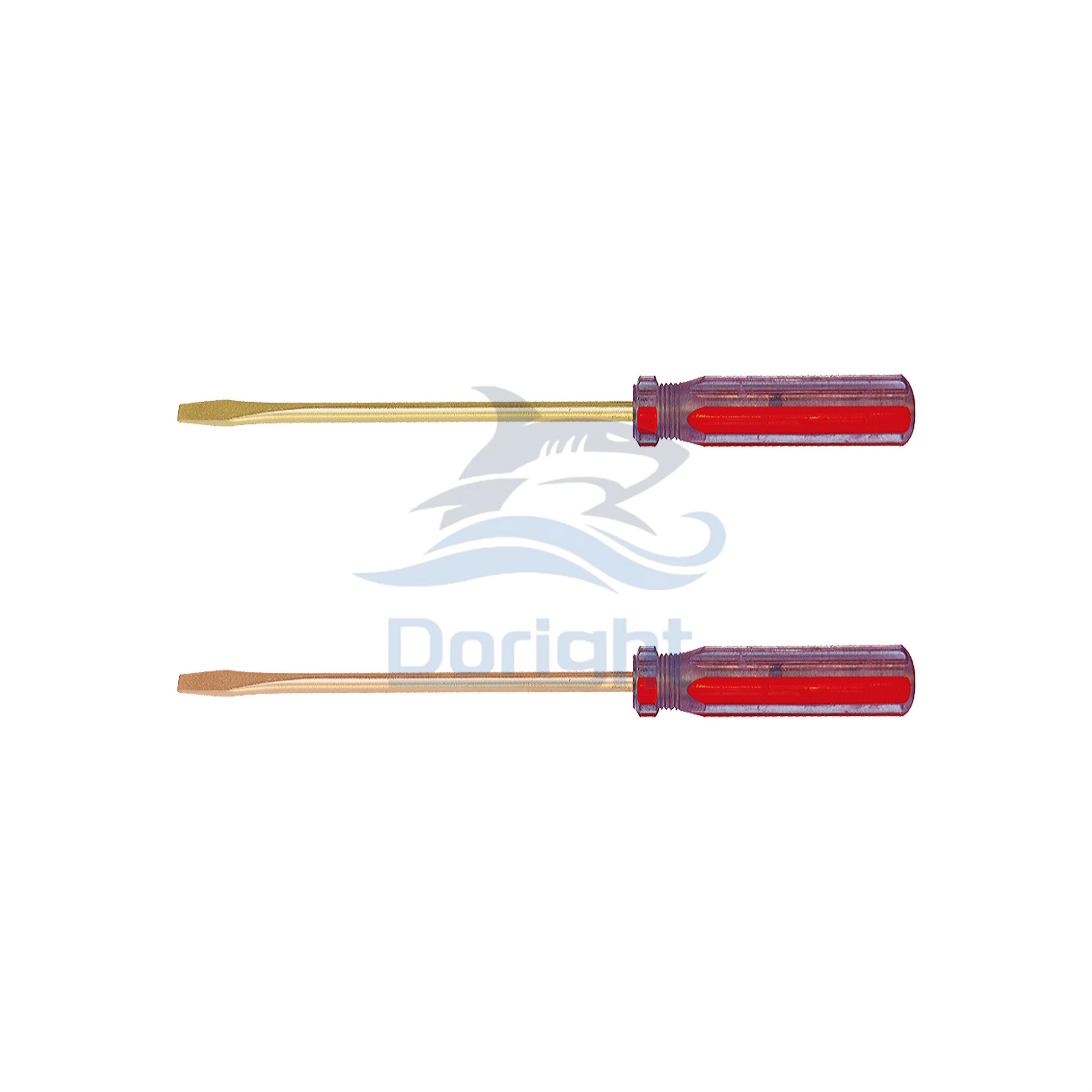

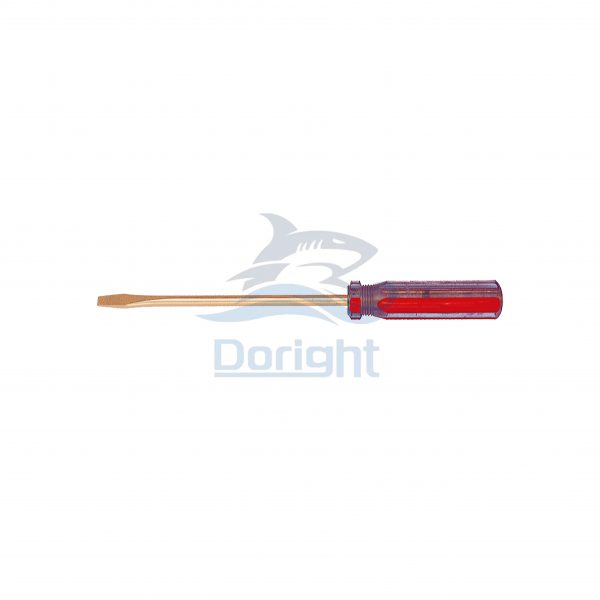

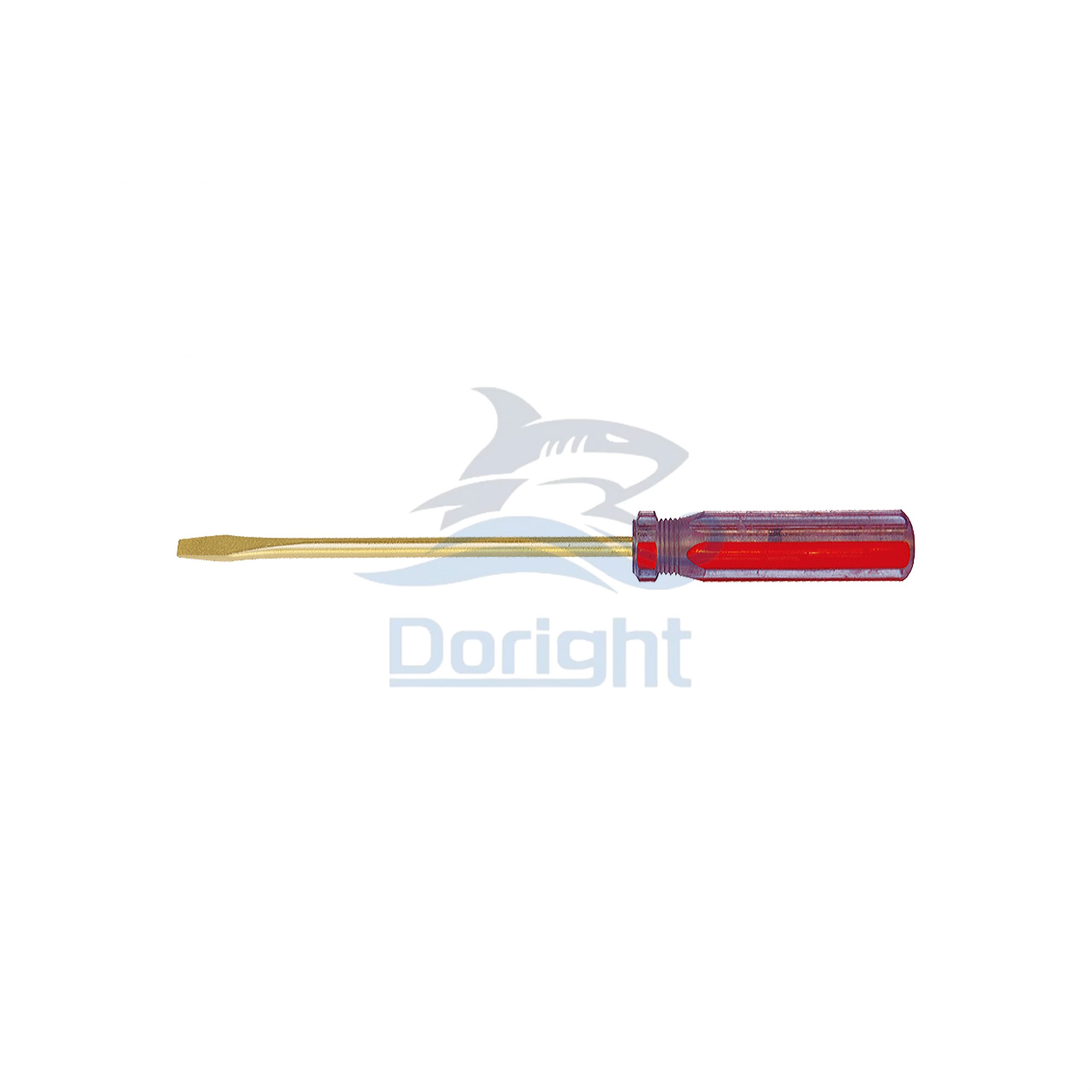

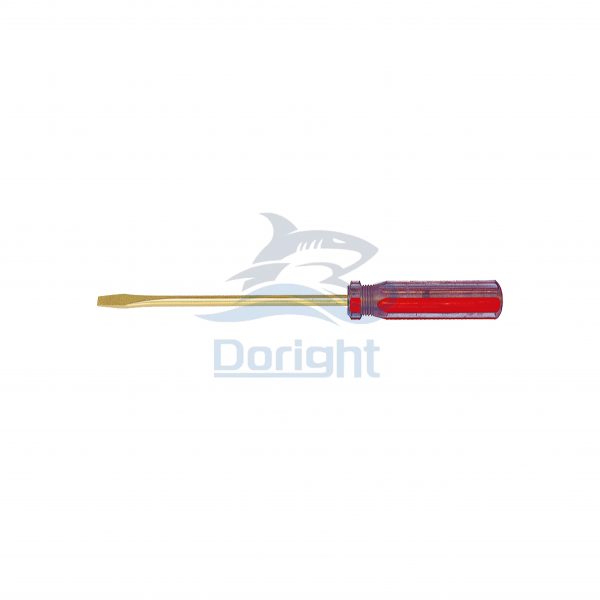

■Fasten and unload slotted bolt, the handle can be striken.
| Number | L1 inch | L1 mm | L mm | H mm | B mm | Be-Cu g | Al-Br g |
| 263-1002 | 2 | 50 | 108 | 0.5 | 3 | 35 | 32 |
| 263-1004 | 3 | 75 | 133 | 0.6 | 3 | 48 | 44 |
| 263-1006 | 3 | 75 | 153 | 0.8 | 4 | 50 | 45 |
| 263-1008 | 3 | 75 | 153 | 1.0 | 5 | 51 | 46 |
| 263-1010 | 4 | 100 | 178 | 0.8 | 4 | 60 | 55 |
| 263-1012 | 4 | 100 | 178 | 1.0 | 5 | 71 | 65 |
| 263-1014 | 4 | 100 | 193 | 1.1 | 6 | 77 | 70 |
| 263-1016 | 6 | 150 | 243 | 1.2 | 7 | 115 | 105 |
| 263-1018 | 8 | 200 | 305 | 1.2 | 8 | 197 | 180 |
| 263-1020 | 10 | 250 | 355 | 1.6 | 9 | 221 | 202 |
| 263-1022 | 12 | 300 | 420 | 1.6 | 10 | 304 | 278 |
| 263-1024 | 14 | 350 | 470 | 1.8 | 11 | 365 | 335 |
