■Non-sparking Tools
■Beryllium Copper & Aluminum Bronze
■Die Forged
■Q/ZBF-167E

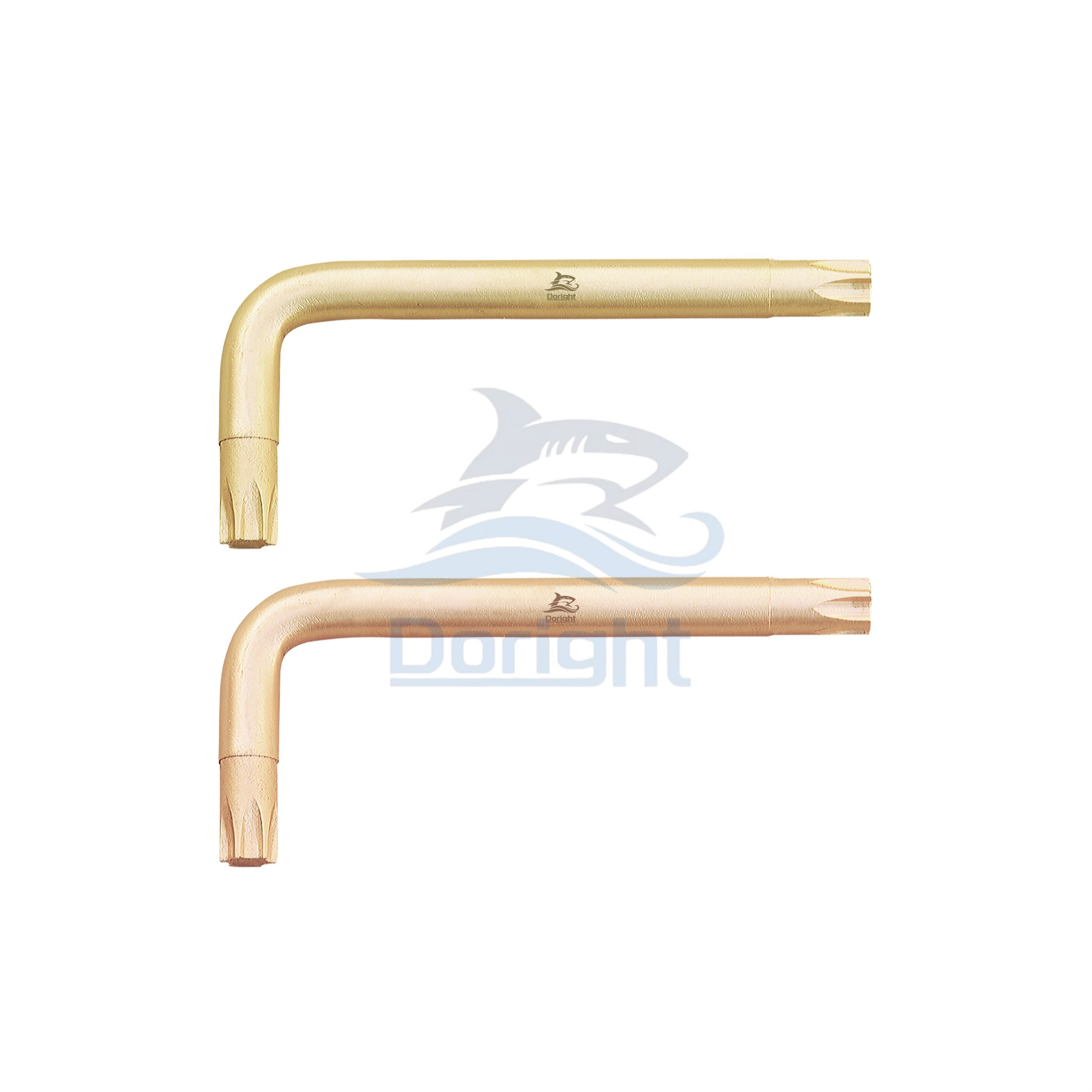

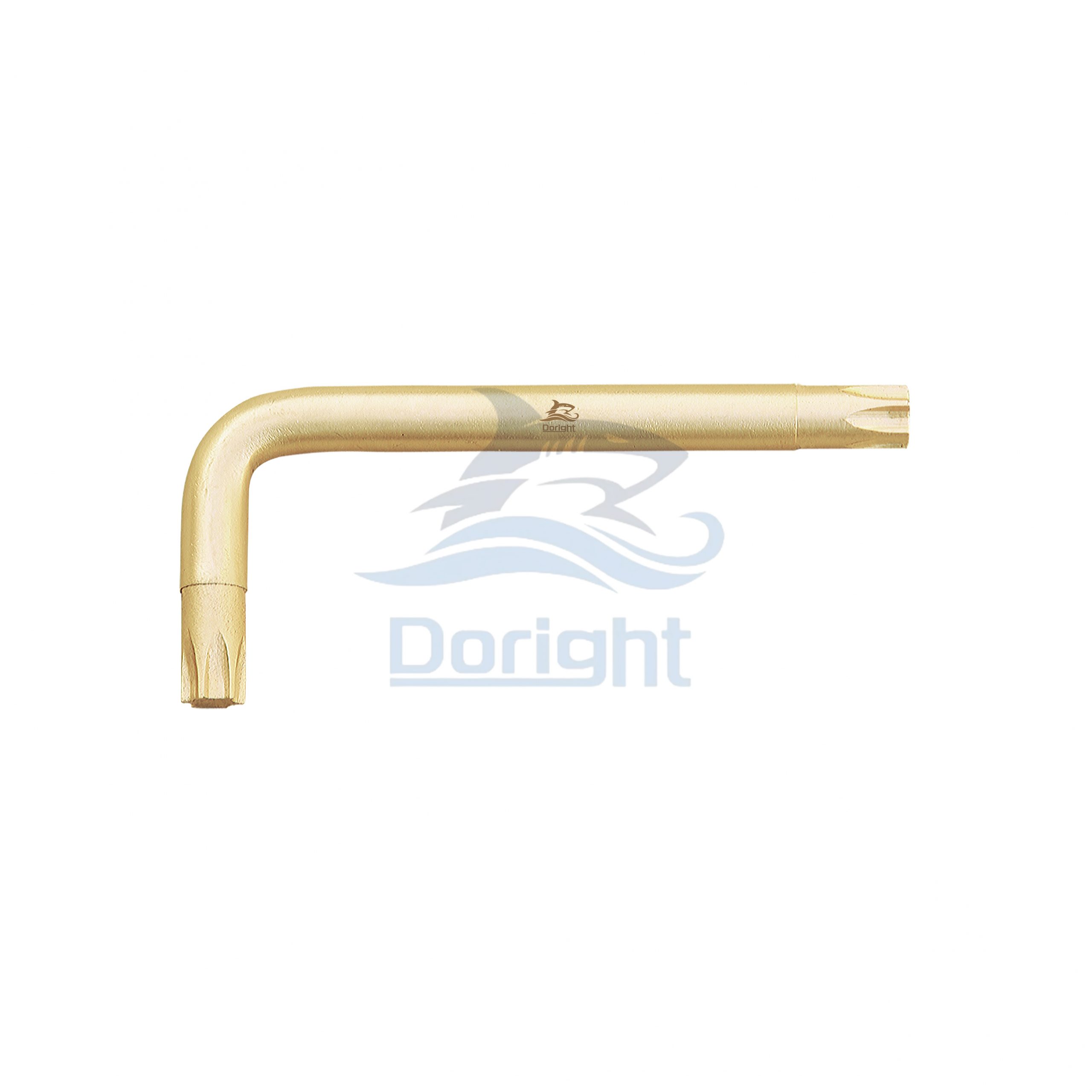

■The cross section resembles a star. Used to fasten or remove star hexagon socket screws.
| Number | Size | L mm | H mm | Be-Cu g | Al-Br g |
| 167E-6 | T6 | 42 | 16 | 8 | 5 |
| 167E-7 | T7 | 48 | 16 | 8 | 5 |
| 167E-8 | T8 | 48 | 16 | 8 | 5 |
| 167E-9 | T9 | 48 | 16 | 8 | 5 |
| 167E-10 | T10 | 51 | 17 | 8 | 5 |
| 167E-15 | T15 | 54 | 18 | 10 | 8 |
| 167E-20 | T20 | 57 | 20 | 13 | 10 |
| 167E-25 | T25 | 60 | 20 | 17 | 13 |
| 167E-27 | T27 | 64 | 21 | 20 | 15 |
| 167E-30 | T30 | 70 | 24 | 30 | 25 |
| 167E-40 | T40 | 76 | 26 | 40 | 35 |
| 167E-45 | T45 | 83 | 29 | 50 | 45 |
| 167E-50 | T50 | 95 | 32 | 75 | 65 |
| 167E-55 | T55 | 108 | 35 | 145 | 130 |
| 167E-60 | T60 | 120 | 38 | 210 | 190 |
