■ Beryllium copper alloy and Aluminum bronze material.
■ DIN7444 Standard.
■ Die forged.

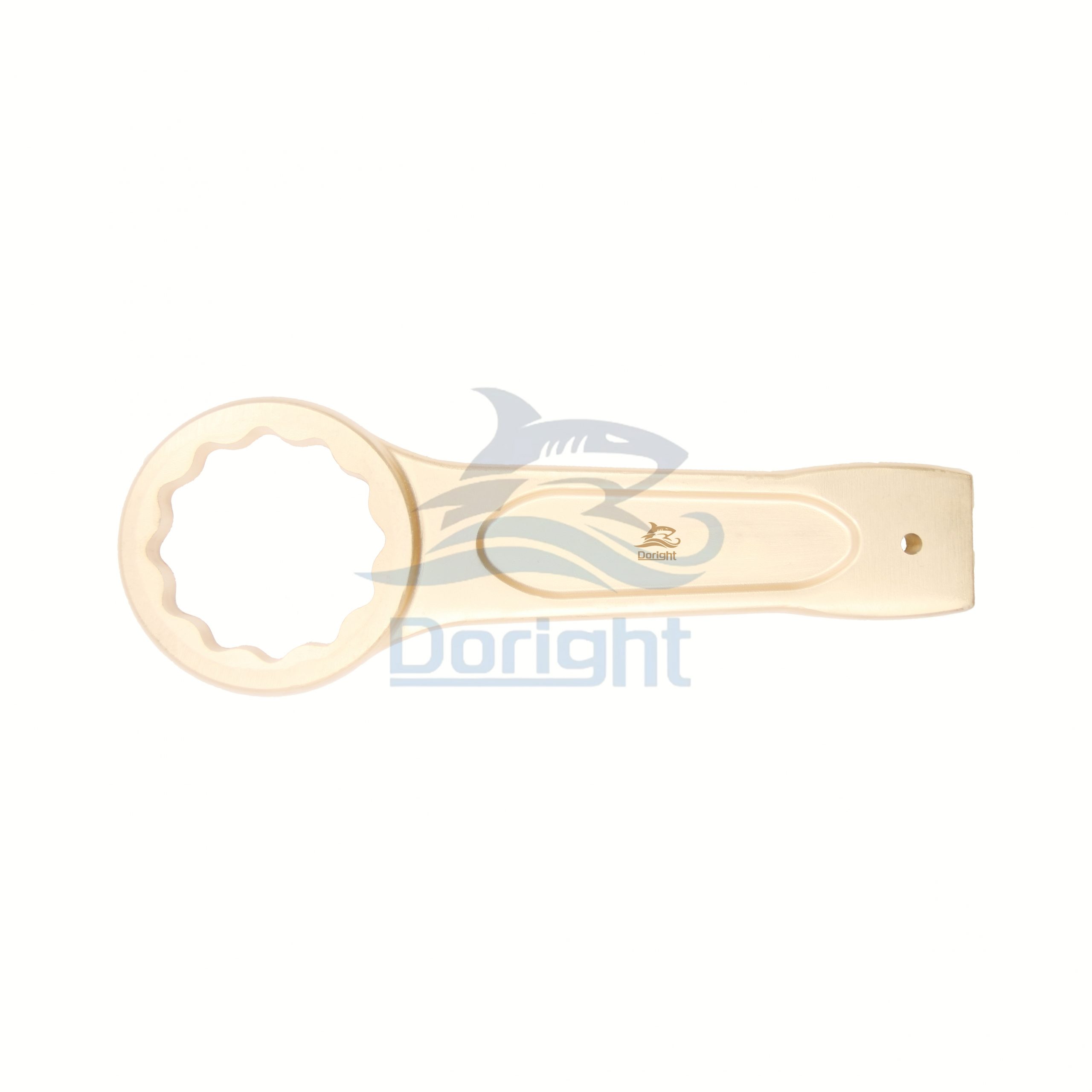

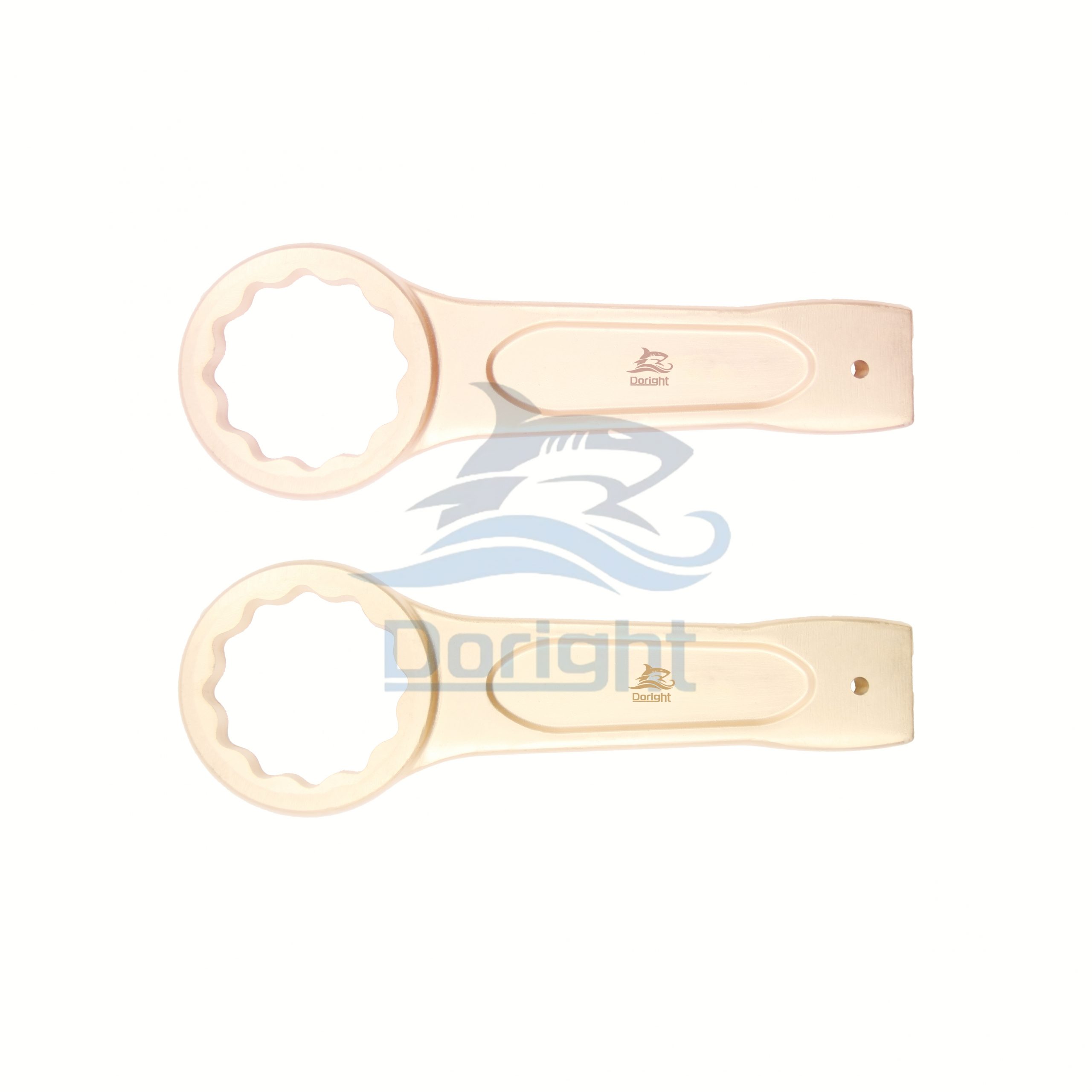

■ Slugging wrenches are designed for loosening or tightening nuts and bolts where impact or shock loading is required.
■ Used with hammer.
| Number | s mm | L mm | Be-Cu g | Al-Cu g | Q’ty Carton | Be~Cu Gw ;kg | Al~Cu Gw ;kg |
| 160-17 | 17 | 145 | 140 | 125 | 20 | 3. 18 | 2.90 |
| 160-19 | 19 | 145 | 140 | 125 | 20 | 3. 18 | 2.90 |
| 160-22 | 22 | 155 | 180 | 160 | 20 | 4. 05 | 3.73 |
| 160-24 | 24 | 165 | 250 | 220 | 20 | 5.37 | 4.93 |
| 160-27 | 27 | 175 | 350 | 315 | 20 | 7. 05 | 6. 50 |
| 160-30 | 30 | 185 | 475 | 430 | 20 | 9. 00 | 8.30 |
| 160-32 | 32 | 185 | 490 | 450 | 20 | 9. 50 | 8.70 |
| 160-34 | 34 | 200 | 540 | 490 | 16 | 9. 00 | 8.25 |
| 160-36 | 36 | 205 | 580 | 520 | 16 | 9. 50 | 8.70 |
| 160-38 | 38 | 215 | 680 | 620 | 12 | 8. 10 | 7.40 |
| 160-41 | 41 | 225 | 755 | 680 | 12 | 9.40 | 8.55 |
| 160-46 | 46 | 235 | 990 | 890 | 10 | 10.00 | 9. 15 |
| 160-50 | 50 | 250 | 1145 | 1030 | 8 | 9. 70 | 8.85 |
| 160-55 | 55 | 265 | 1440 | 1300 | 8 | 11.20 | 10. 20 |
| 160-60 | 60 | 274 | 1620 | 1450 | 6 | 9. 95 | 9.06 |
| 160-65 | 65 | 298 | 1995 | 1800 | / | / | / |
| 160-70 | 70 | 320 | 2435 | 2200 | / | / | / |
| 160-75 | 75 | 326 | 3010 | 2720 | / | / | / |
| 160-80 | 80 | 350 | 3600 | 3250 | / | / | / |
| 160-85 | 85 | 355 | 4330 | 3915 | / | / | / |
| 160-90 | 90 | 380 | 5200 | 4700 | / | / | / |
| 160-95 | 95 | 390 | 5450 | 4920 | / | / | / |
| 160-100 | 100 | 410 | 6750 | 6100 | / | / | / |
| 160-105 | 105 | 420 | 7000 | 6320 | / | / | / |
| 160-110 | 110 | 445 | 8000 | 7250 | / | / | / |
| 160-120 | 120 | 480 | 11000 | 9930 | / | / | / |
| 160-130 | 130 | 520 | 12610 | 11400 | / | / | / |
| 160-140 | 140 | 520 | 13000 | 11750 | / | / | / |
| 160-150 | 150 | 565 | 14500 | 13100 | / | / | / |
