■Non-sparking Tools
■Beryllium Copper & Aluminum Bronze
■Die Forged
■QB/T2613.1

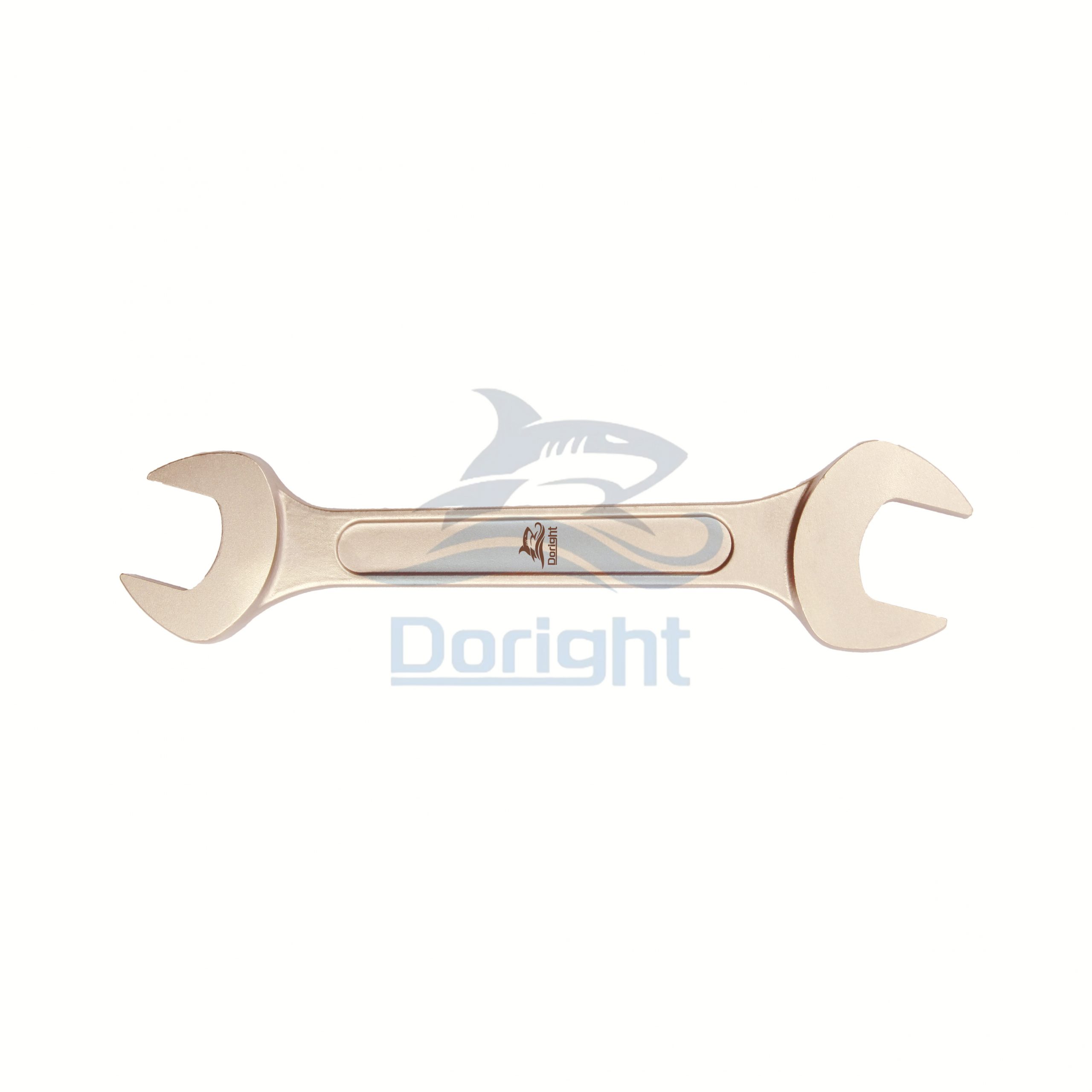

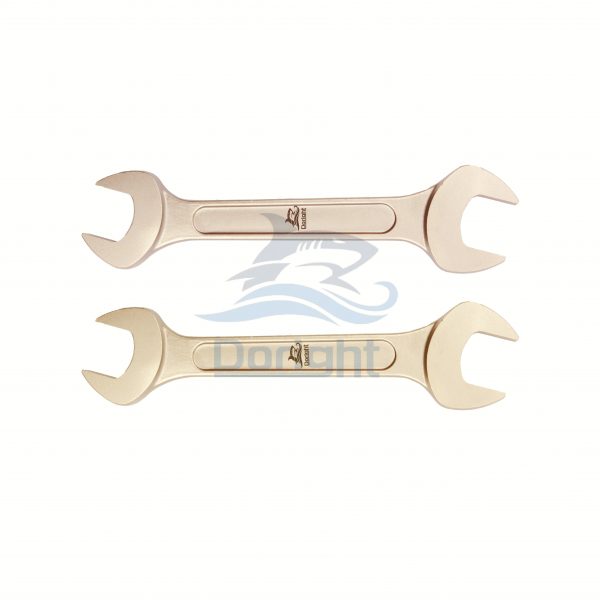

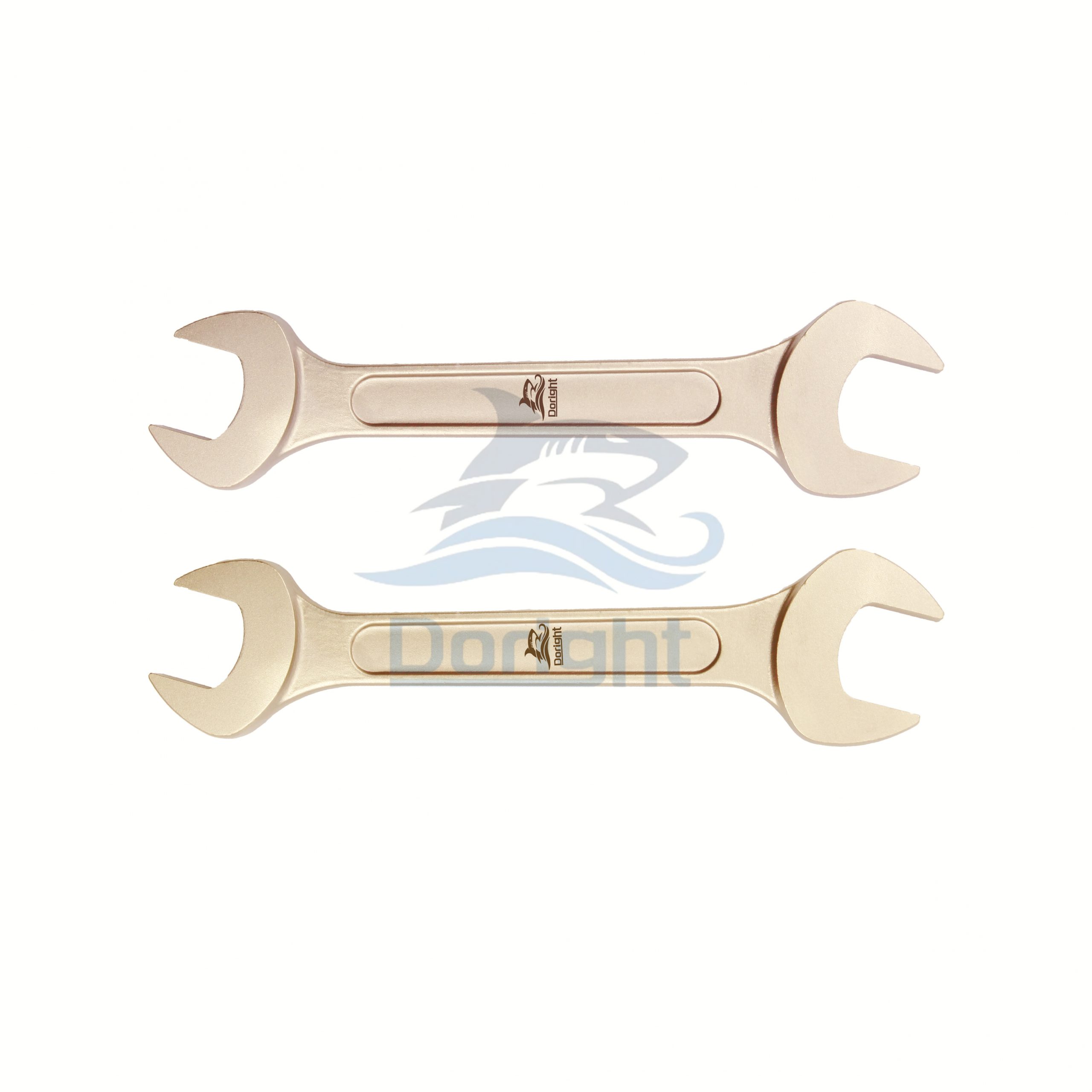

■Used to tighten or loosen bolts and nuts.
| Number | S1*S2 mm | L mm | Be-Cu g | Al-Cu g |
| 146-0507 | 5.5*7 | 90 | 23 | 20 |
| 146-0607 | 6*7 | 90 | 25 | 22 |
| 146-0709 | 1*9 | 100 | 28 | 25 |
| 146-0810 | 8*10 | 100 | 34 | 31 |
| 146-0911 | 9*11 | 110 | 50 | 45 |
| 146-1011 | 10*11 | 120 | 52 | 47 |
| 146-1012 | 10*12 | 120 | 60 | 55 |
| 146-1014 | 10*14 | 130 | 68 | 62 |
| 146-1213 | 12*13 | 130 | 73 | 67 |
| 146-1214 | 12*14 | 130 | 75 | 69 |
| 146-1317 | 13*17 | 150 | 110 | 100 |
| 146-1415 | 14*15 | 143 | 115 | 105 |
| 146-1417 | 14*17 | 150 | 120 | 110 |
| 146-1617 | 16*17 | 160 | 130 | 120 |
| 146-1618 | 16*18 | 160 | 145 | 130 |
| 146-1719 | 17*19 | 170 | 150 | 135 |
| 146-1819 | 18*19 | 170 | 200 | 180 |
| 146-1921 | 19*21 | 185 | 210 | 190 |
| 146-1922 | 19*22 | 185 | 220 | 200 |
| 146-1924 | 19*24 | 190 | 235 | 210 |
| 146-2022 | 20*22 | 200 | 250 | 225 |
| 146-2123 | 21*23 | 200 | 270 | 235 |
| 146-2126 | 21*26 | 215 | 275 | 245 |
| Number | S1*S2 mm | L mm | Be-Cu g | Al-Cu g |
| 146-2224 | 22*24 | 210 | 312 | 285 |
| 146-2227 | 22*21 | 215 | 320 | 292 |
| 146-2326 | 23*26 | 220 | 330 | 302 |
| 146-2427 | 24*21 | 230 | 345 | 310 |
| 146-2430 | 24*30 | 235 | 365 | 330 |
| 146-2528 | 25*28 | 235 | 365 | 330 |
| 146-2632 | 26*32 | 255 | 465 | 420 |
| 146-2730 | 27*30 | 250 | 485 | 430 |
| 146-2732 | 27*32 | 255 | 600 | 549 |
| 146-3032 | 30*32 | 265 | 610 | 540 |
| 146-3036 | 30*36 | 285 | 815 | 730 |
| 146-3234 | 32*34 | 285 | 815 | 730 |
| 146-3236 | 32*36 | 300 | 885 | 800 |
| 146-3436 | 34*36 | 300 | 885 | 800 |
| 146-3638 | 36*38 | 330 | 1350 | 1210 |
| 146-3641 | 36*41 | 330 | 1350 | 1210 |
| 146-3840 | 38*40 | 330 | 1350 | 1210 |
| 146-4146 | 41*46 | 360 | 1690 | 1530 |
| 146-4650 | 46*50 | 370 | 2050 | 1850 |
| 146-5055 | 50*55 | 385 | 2160 | 1950 |
| 146-5060 | 50*60 | 400 | 2488 | 2275 |
| 146-5560 | 55*60 | 415 | 2700 | 2450 |
| 146-6065 | 60*65 | 435 | 3950 | 3600 |
