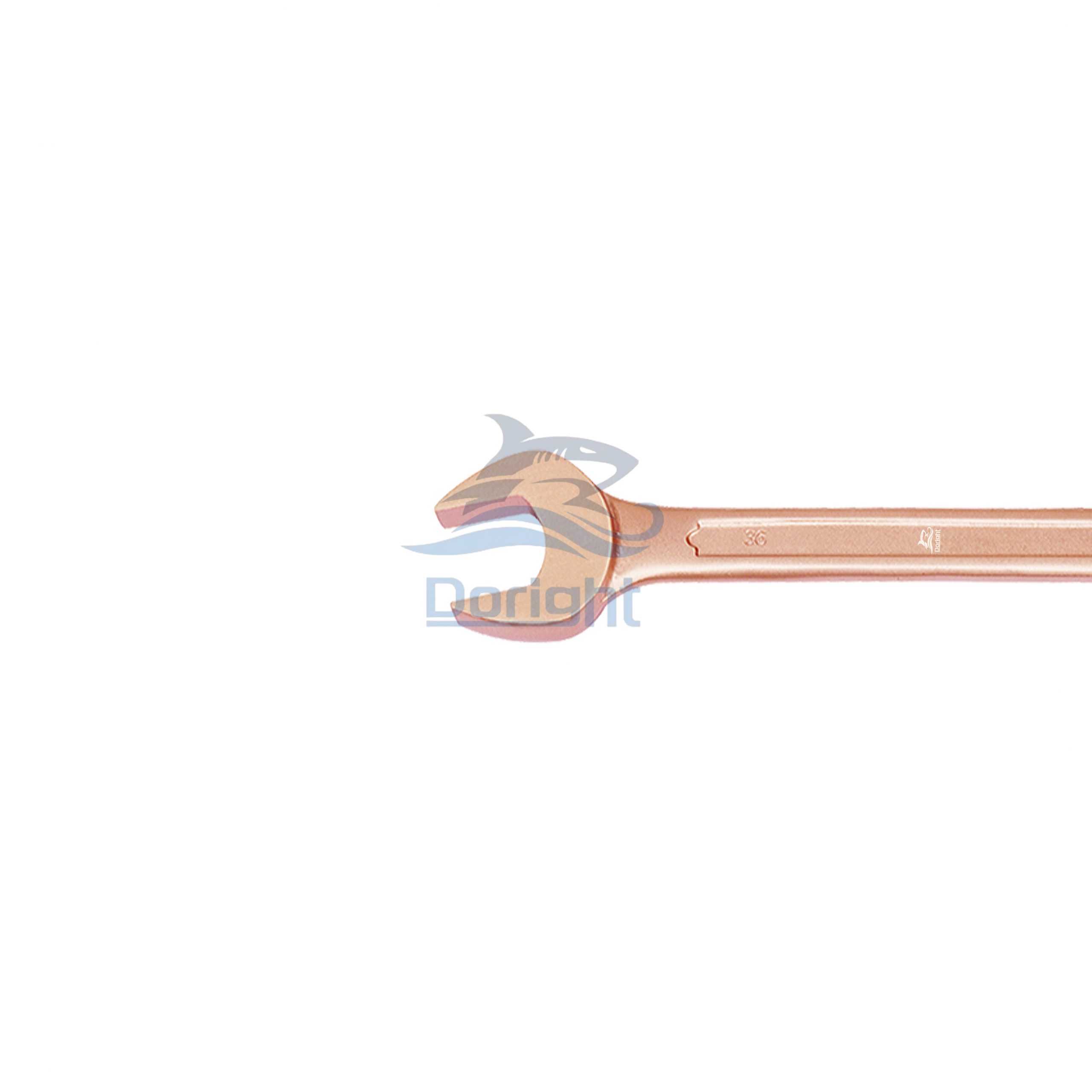

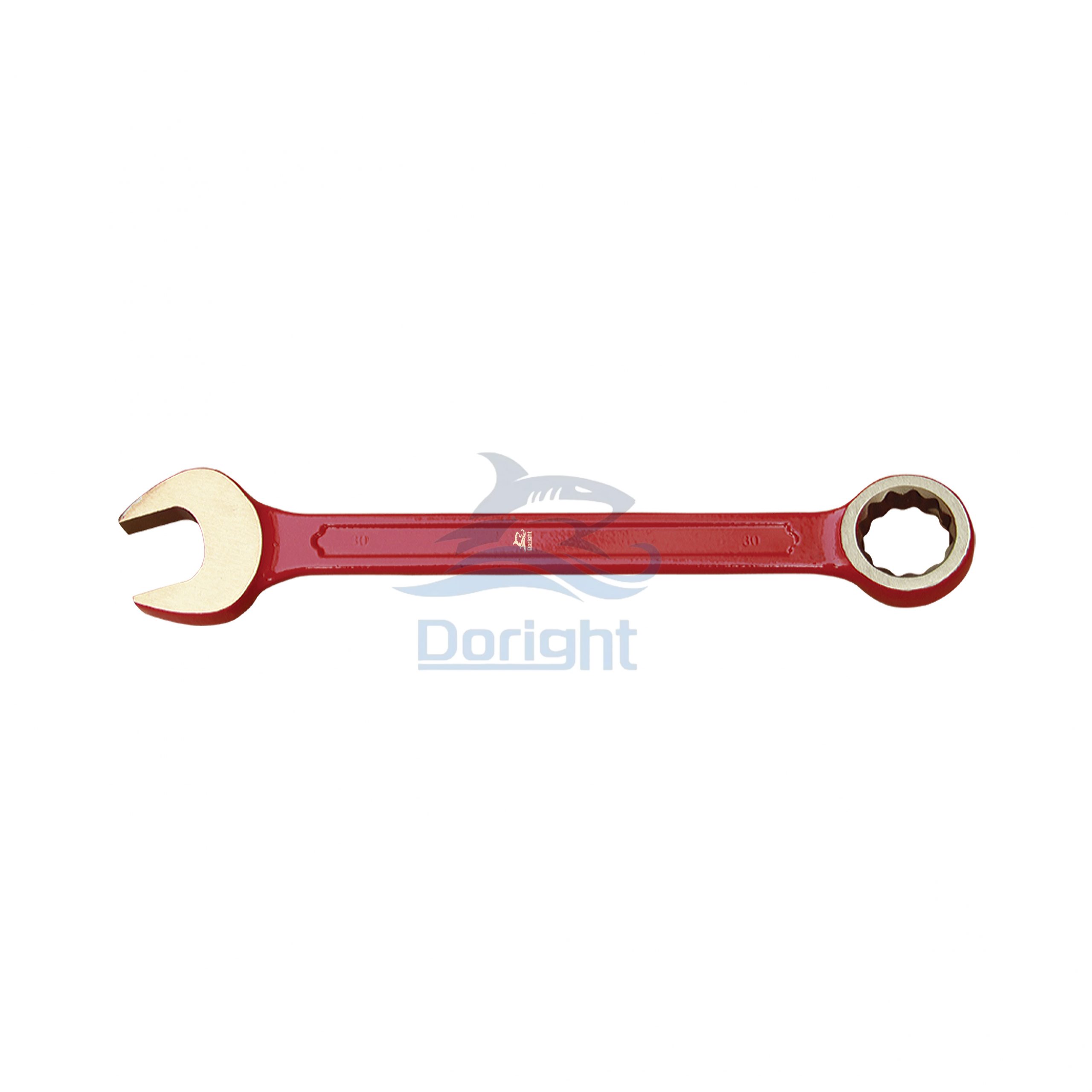

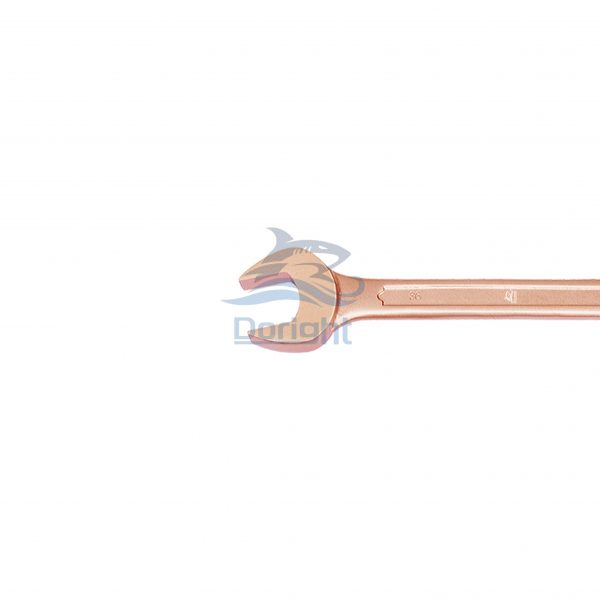

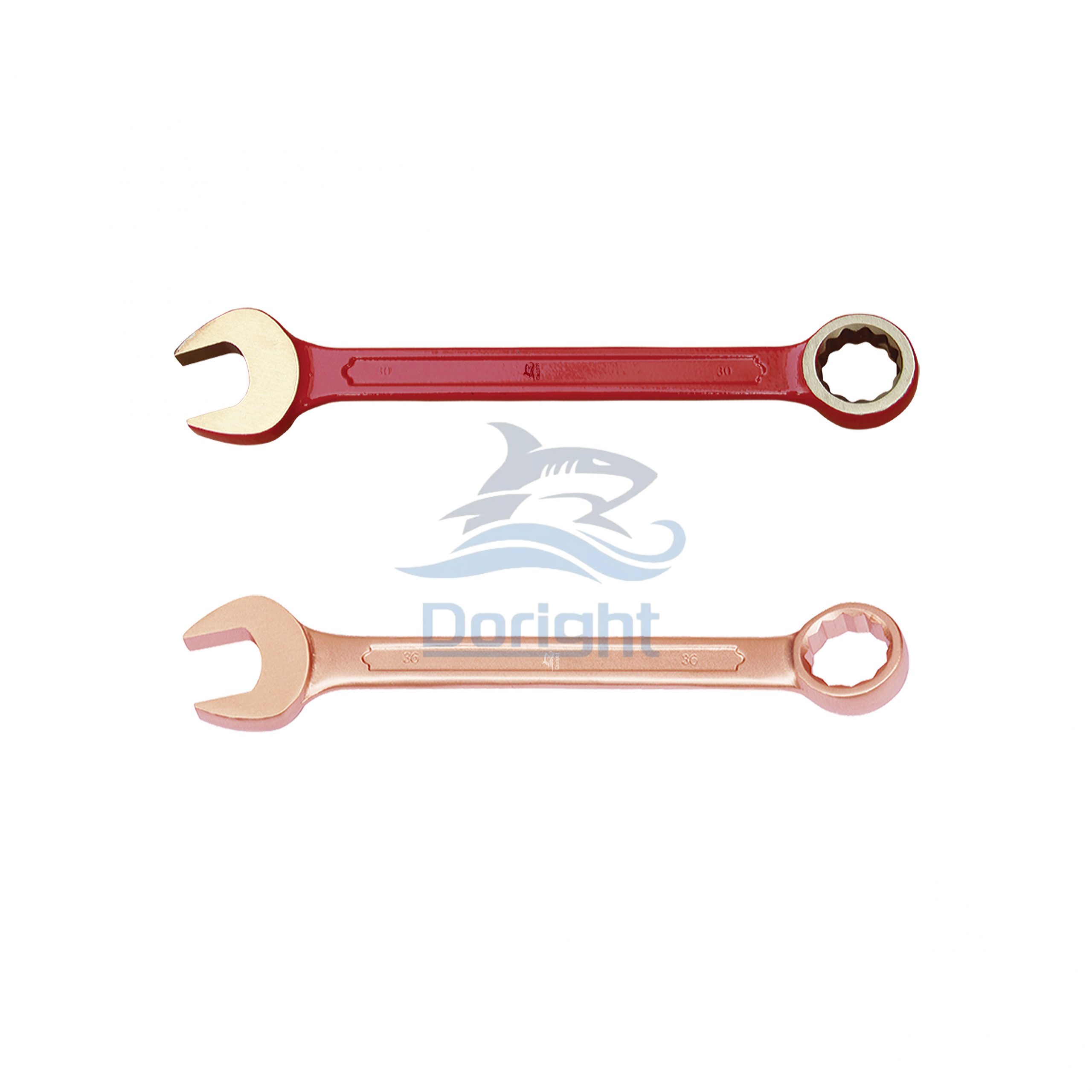

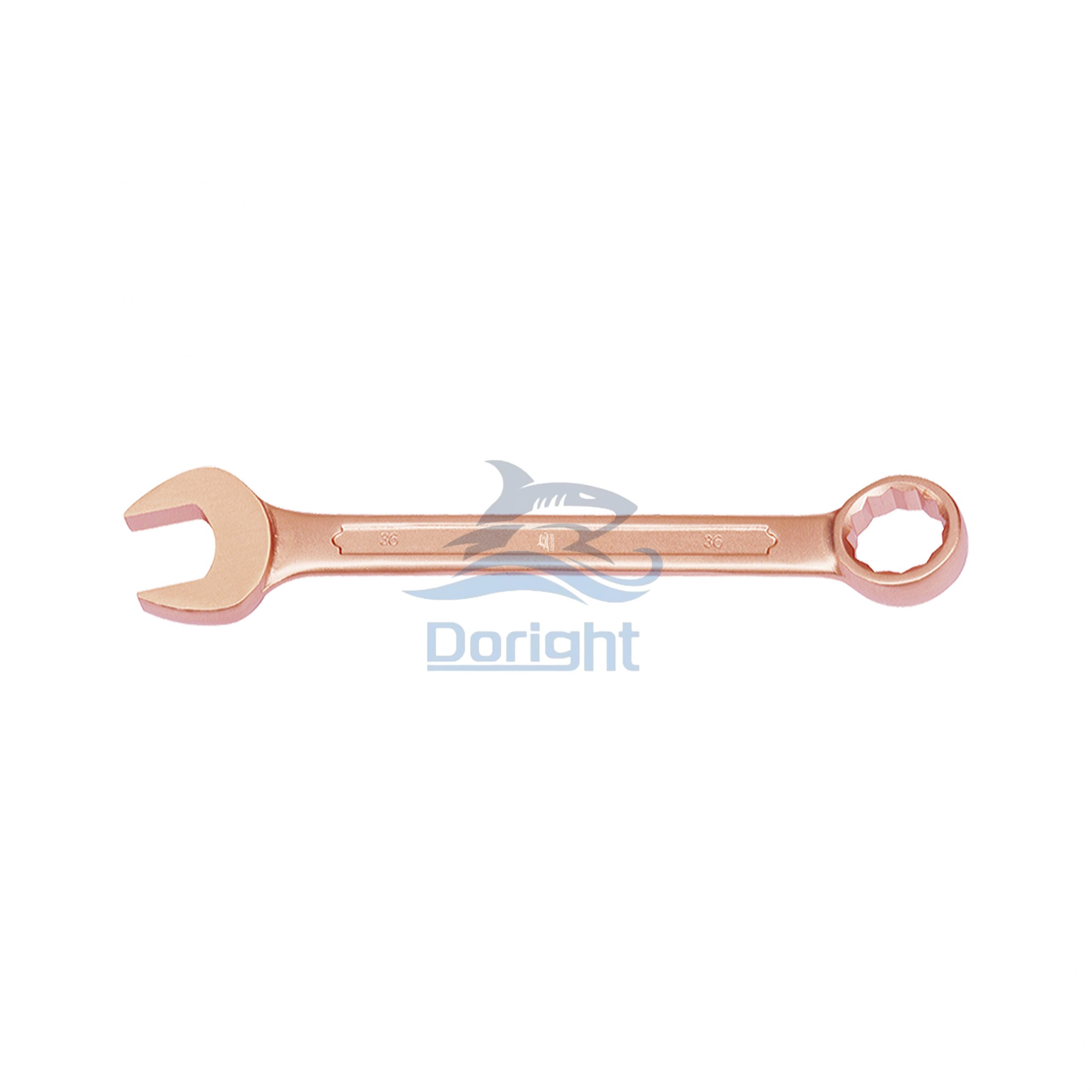

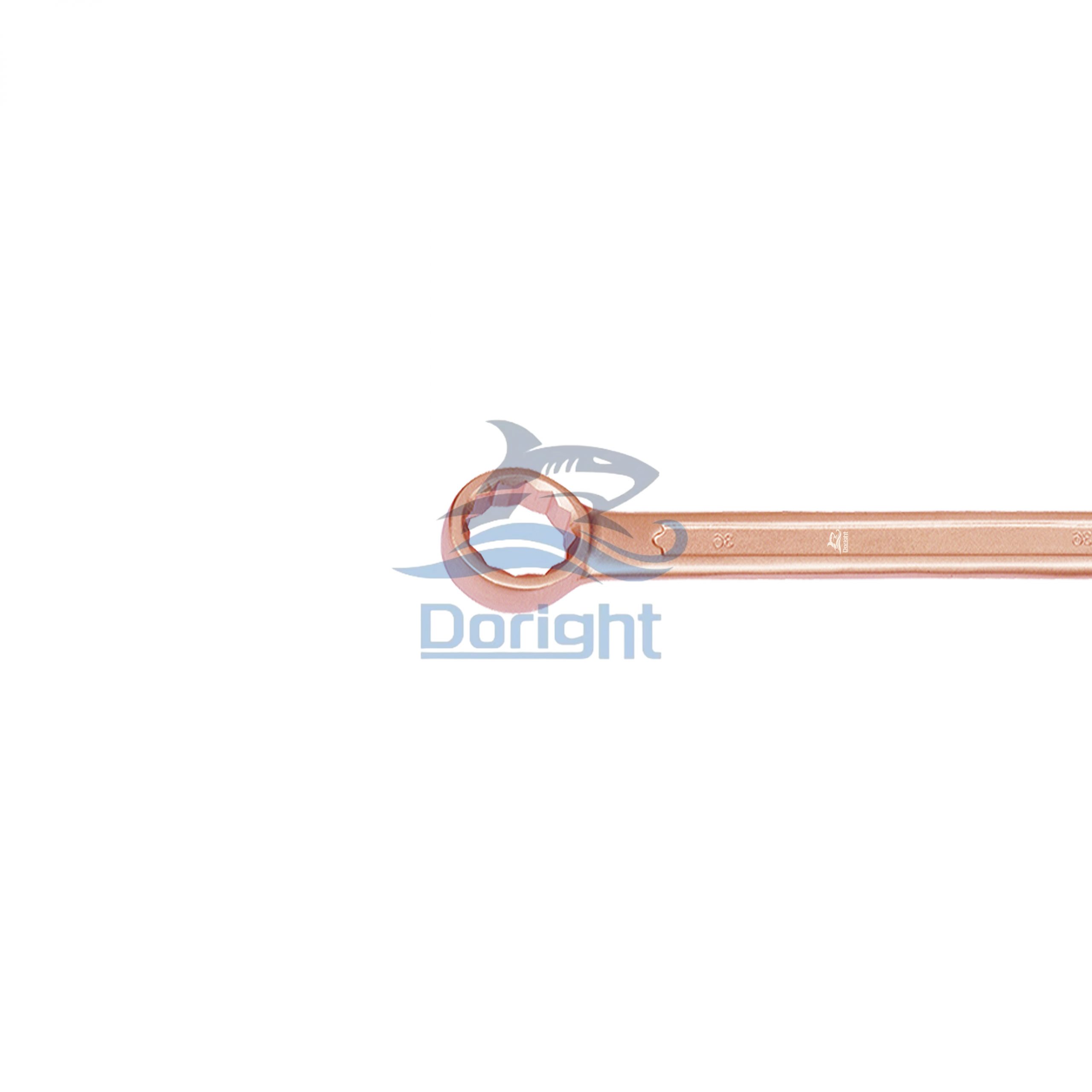

■ Aluminium Bronze Alloy and Beryllium Copper Alloy
■ DIN3113 Standard
■ Die Forged
■ Both ends generally fit the same size of bolts and nuts
| Number | S mm | L mm | Be-Cu g | Al-Cu g |
| 135-6 | 6 | 105 | 22 | 20 |
| 135-7 | 7 | 120 | 37 | 34 |
| 135-8 | 8 | 120 | 37 | 34 |
| 135-9 | 9 | 135 | 55 | 50 |
| 135-10 | 10 | 135 | 55 | 50 |
| 135-11 | 11 | 150 | 75 | 75 |
| 135-12 | 12 | 150 | 75 | 70 |
| 135-13 | 13 | 175 | 122 | 110 |
| 135-14 | 14 | 175 | 122 | 110 |
| 135-15 | 15 | 195 | 160 | 145 |
| 135-16 | 16 | 195 | 155 | 140 |
| 135-17 | 17 | 195 | 155 | 140 |
| 135-18 | 18 | 215 | 210 | 190 |
| 135-19 | 19 | 215 | 210 | 190 |
| 135-20 | 20 | 230 | 225 | 200 |
| 135-21 | 21 | 230 | 225 | 200 |
| 135-22 | 22 | 245 | 250 | 220 |
| 135-23 | 23 | 265 | 265 | 233 |
| 135-24 | 24 | 265 | 260 | 230 |
| 135-25 | 25 | 265 | 260 | 230 |
| 135-26 | 26 | 290 | 420 | 380 |
| 135-27 | 27 | 290 | 420 | 380 |
| 135-30 | 30 | 320 | 560 | 500 |
| 135-32 | 32 | 340 | 670 | 600 |
| 135-34 | 34 | 360 | 850 | 750 |
| 135-35 | 35 | 360 | 890 | 800 |
| 135-36 | 36 | 360 | 890 | 800 |
| 135-38 | 38 | 395 | 1200 | 1150 |
| 135-41 | 41 | 430 | 1440 | 1300 |
| 135-46 | 46 | 480 | 1890 | 1700 |
| 135-50 | 50 | 520 | 2220 | 2000 |
| 135-55 | 55 | 560 | 2460 | 2230 |
| 135-60 | 60 | 595 | 3300 | 2950 |
| 135-65 | 65 | 595 | 3250 | 2900 |
| 135-70 | 70 | 630 | 4550 | 4100 |
